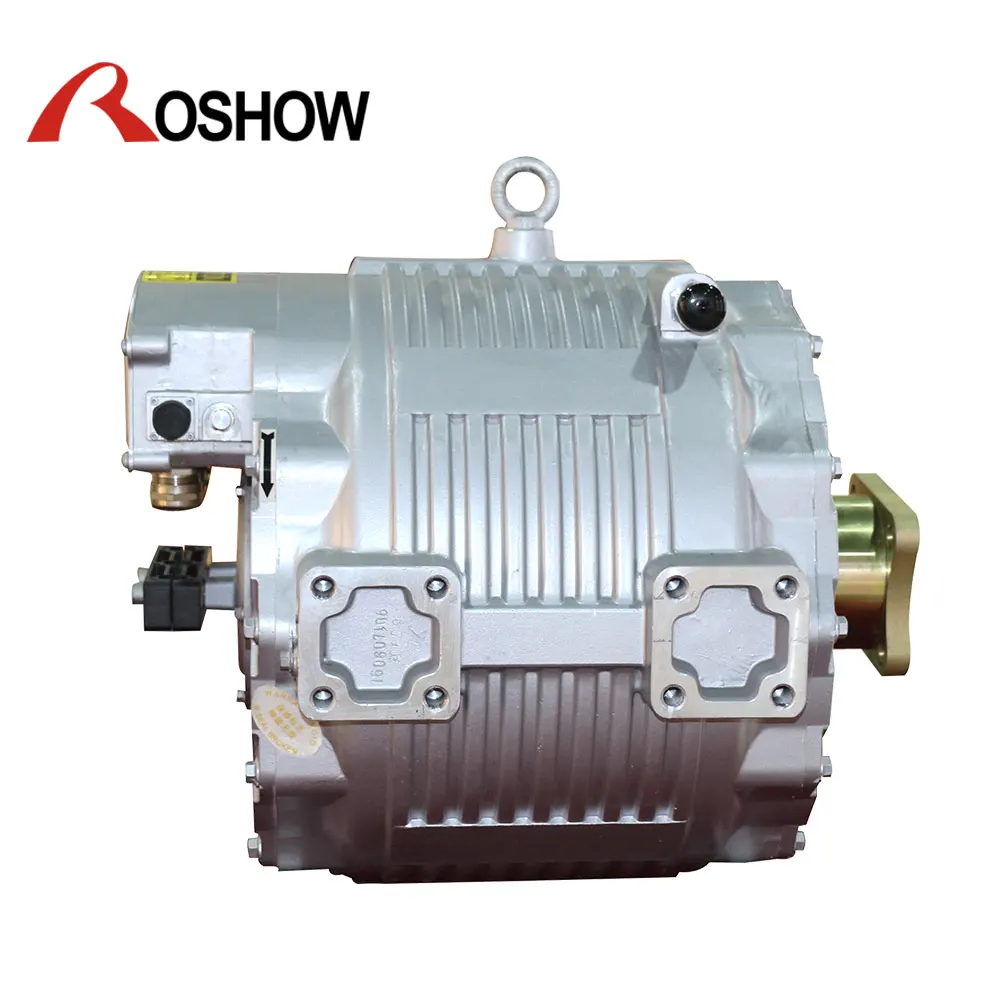

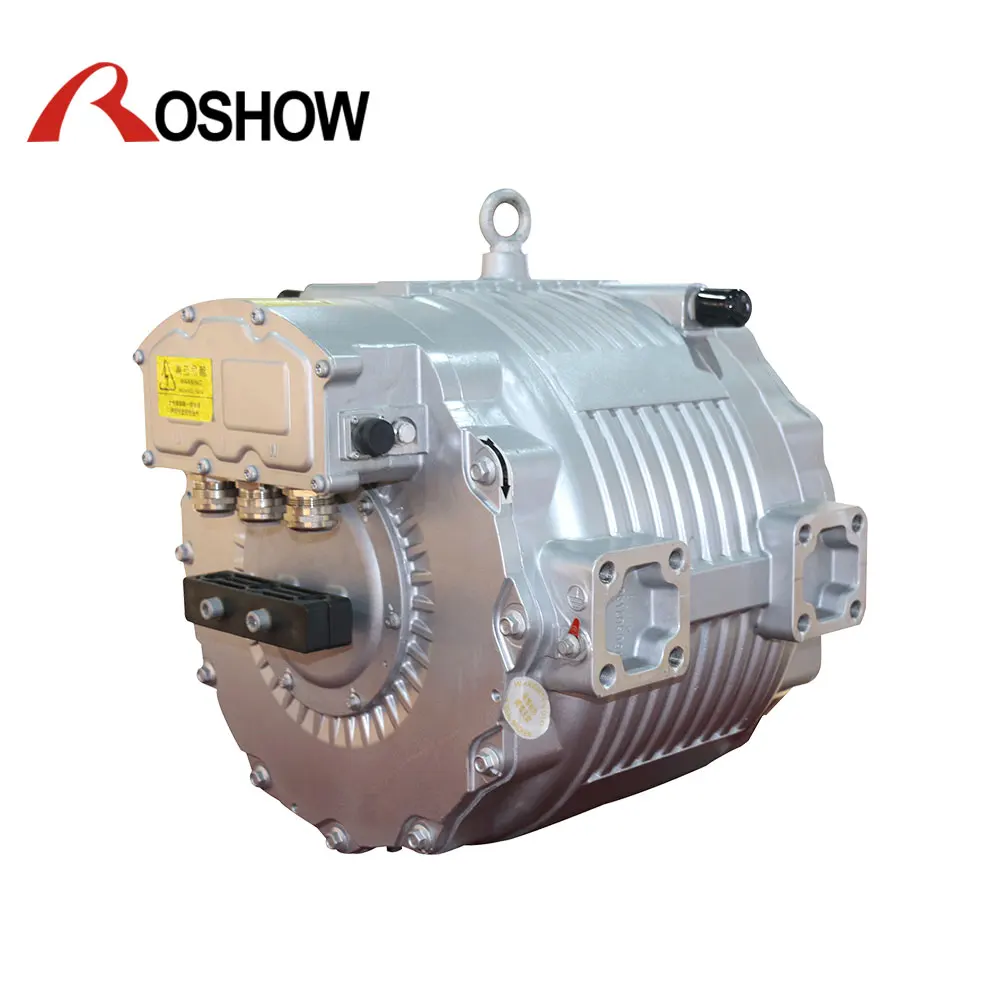

3 phase 30KW new energy vehicle permanent magnet synchronous motor

FOB Reference Price:Get Latest Price
US $300-3,000 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
ROSHOW
Model Number:
TZ185XS060A
Type:
Synchronous Motor
Frequency:
50HZ/60HZ
Output Power:
30KW
Protect Feature:
IP67
Phase:
Three-phase
Certification:
CCC, CE, ROHS, UL, CE, ROHS, UL, IATF
AC Voltage:
220 AC
Place of Origin:
Zhejiang, China (Mainland)
Efficiency:
up to 95
Rated RPM:
2865rpm
Rated Torque:
100Nm
Peak Power:
60kw
Peak Torque:
225Nm
Peak RPM:
9000rpm
Cooling methods:
Liquid cooled≥12LPM
Supply Ability
Supply Ability:
5000 Unit/Units per Month
Packaging & Delivery
Packaging Details
wood box or as customer required
Port
NINFBO/SHANGHAI

 3 phase 30KW new energy vehicle permanent magnet synchronous motor

Packaging & Shipping

 Packaging Details: Specially designed package will be adopts for the aboved new energy motor ,  wood box and pallets.

Delivery Time: 30-35days

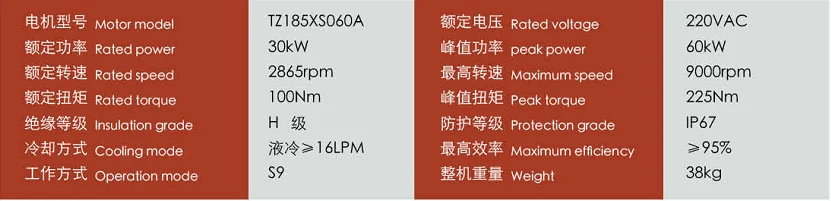

1)Technical Date:



 Remark:The above technical datas are only for reference,we can customerize them according to your demands.

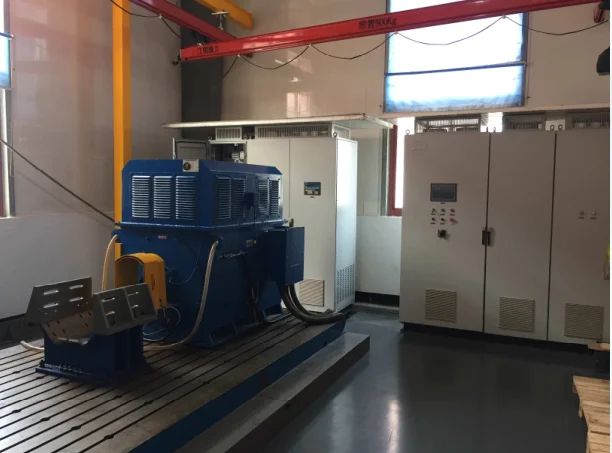

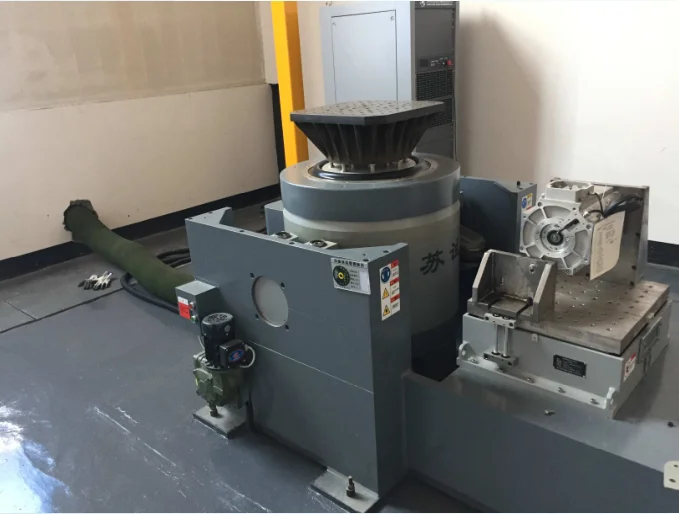

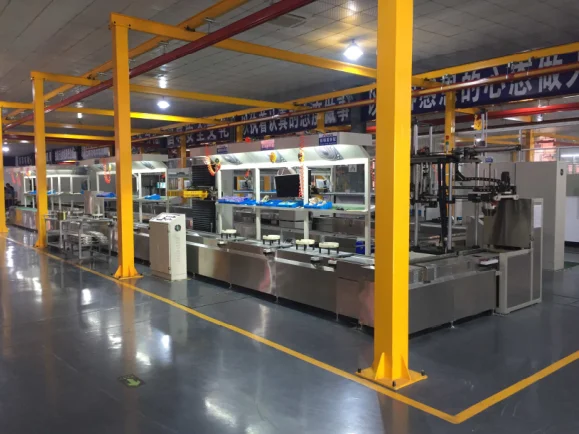

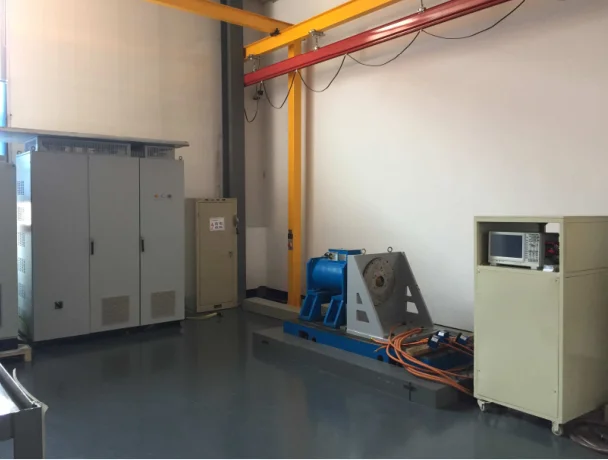

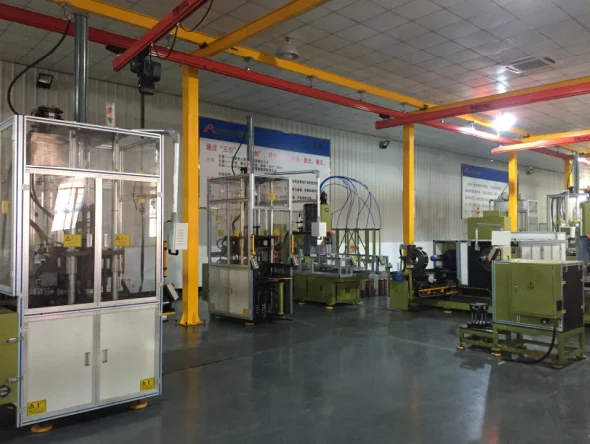

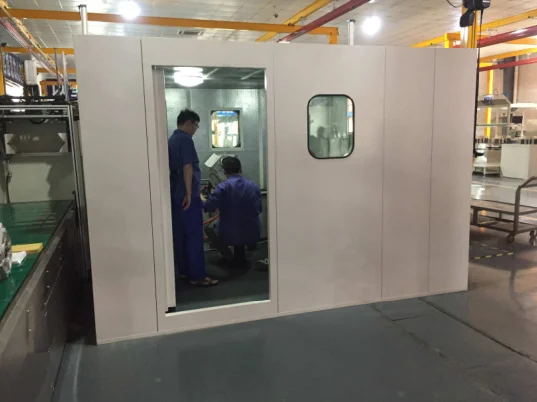

Workshop Overview

paste-pic-dp_uuid_bwwoh




Related  AC New energy  Motor series
MODEL TYPERated powerRated voltageRPMDutyTorqueInsulation GradePeak PowerProtect GradeMax speedCooling methodsPeak TorquePeak efficiencyDimension
TZ380XS200A125KW380V AC850rpmS91400NmH class250kWIP672800rpmLiquid cooled≥16LPM2500Nm≥95%Φ445X536
TZ290XS150A60KW380V AC2000rpmS9300NmH class150kWIP674500rpmLiquid cooled≥16LPM800Nm≥95%Φ338X354
TZ290XS100C50KW380V AC2000rpmS9250NmH class100kWIP674500rpmLiquid cooled≥16LPM600Nm≥95%Φ338X274
TZ200XF045A20KW225V AC3200rpmS960NmH class50kWIP678000rpmair Cooled200Nm≥95%Φ230X275
TZ185XS060A30KW220V AC2865rpmS9100NmH class60kWIP679000rpmLiquid cooled≥12LPM225Nm≥95%Φ220X242

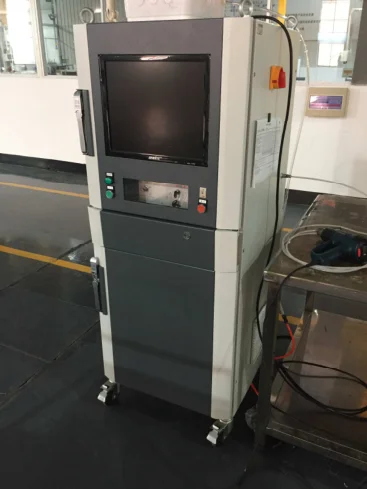

 Quality control
We believe in system-based governance, and insist on the use of the strictest
management system and product certification standards
